Kitchen Plumbing: Planning, Design & Step-by-Step Execution with Reference Tables

Importance of Establishing Kitchen Plumbing

Assessing Kitchen Needs

• Define the number of water points: single/double sink, sprayer, chilled/hot water dispenser, refrigerator line with ice maker, filtration unit.
• Water-connected appliances: dishwasher, instantaneous or central water heater, smart faucet that requires electrical supply.
• Usage pattern: normal daily prep, heavy use, or a secondary prep kitchen.
• Access and maintenance: clear space inside the base cabinet, inspection openings for drain pipes, safe routing for hoses and cables.

Locating the Sink and Appliances

• Align the sink outlet with the wall drain to minimize bends.
• Place the dishwasher close to the sink to share the drain and cold feed.
• Distribute electrical outlets away from moisture sources, providing GFCI points when required.
• Noise and vibration: fix PEX or copper runs on supports to prevent humming.

---

Planning and Design for Establishing Kitchen Plumbing

Selecting Pipe Types and Materials

• Match pipe material to operating temperature and pressure.
• Ensure local availability of fittings and accessories to simplify later replacement.
• Consider resistance to scaling and corrosion, and the ability to route around corners.

Table (1): Comparison of Common Residential Kitchen Pipe Materials

Material	Use	Approx. Temp Limit	Suitable Operating Pressure	Technical Advantages	Installation Notes
PEX	Cold/Hot supply	up to 95°C	2–5 bar	Flexible, fewer joints	Crimp/press; UV protection
CPVC	Cold/Hot supply	up to 90°C	2–5 bar	Corrosion-resistant	Solvent cement; impact-sensitive
Copper	Cold/Hot supply	>100°C	2–6 bar	Thermal endurance, long life	Solder/press; cathodic protection in damp soils
PP-R	Cold/Hot supply	up to 95°C	2–6 bar	Durable fusion welding	Higher thermal expansion; more supports
PVC	Drainage only	—	—	Lightweight, easy to cut	Not for hot water; solvent cement

Defining Valve and Connection Points

• Main shutoff valve for the kitchen branch after the sub-meter.
• Independent angle valves (hot/cold) for the sink, dishwasher, and filtration unit.
• Standard feeds: 1/2″ for mixers and 3/8″–1/2″ for small appliances per catalog.
• Non-return valve and safety drain for instantaneous heaters as specified.

Designing the Sanitary Drain Network

• Horizontal drain slope of 1–2% toward the outlet.
• P-trap (1½”) below the sink with a nearby cleanout.
• Vented connection to the main stack to stabilize pressure and prevent trap siphoning.
• Use two 45° elbows instead of a 90° turn to reduce blockages.

Calculating Diameters, Flow Rates, and Pressure

• Typical supply diameters: 1/2″ for sink, 3/8″ for small appliances, 3/4″ for short main branches inside the kitchen.
• Sink flow rate with aerator typically 6–8 L/min.
• Common residential operating pressure 2–5 bar; measure before design to select reducers/regulators if needed.

Routing Paths and Wall/Floor Sleeves

• Define sleeves through walls with flexible packing to block sound and water migration.
• Keep safety clearances between hot and cold lines and between water lines and electrical runs.
• Place supports every 60–120 cm depending on material to avoid sagging and noise.

---

Step-by-Step Execution for Establishing Kitchen Plumbing

Installing Cold and Hot Water Lines

• Run supply lines from the internal branch using chosen materials, marking hot and cold by color.
• Fix supports per manufacturer schedule; verify straightness and zero slope for supply lines.
• Perform a preliminary pressure test before wall close-up or cabinet installation.

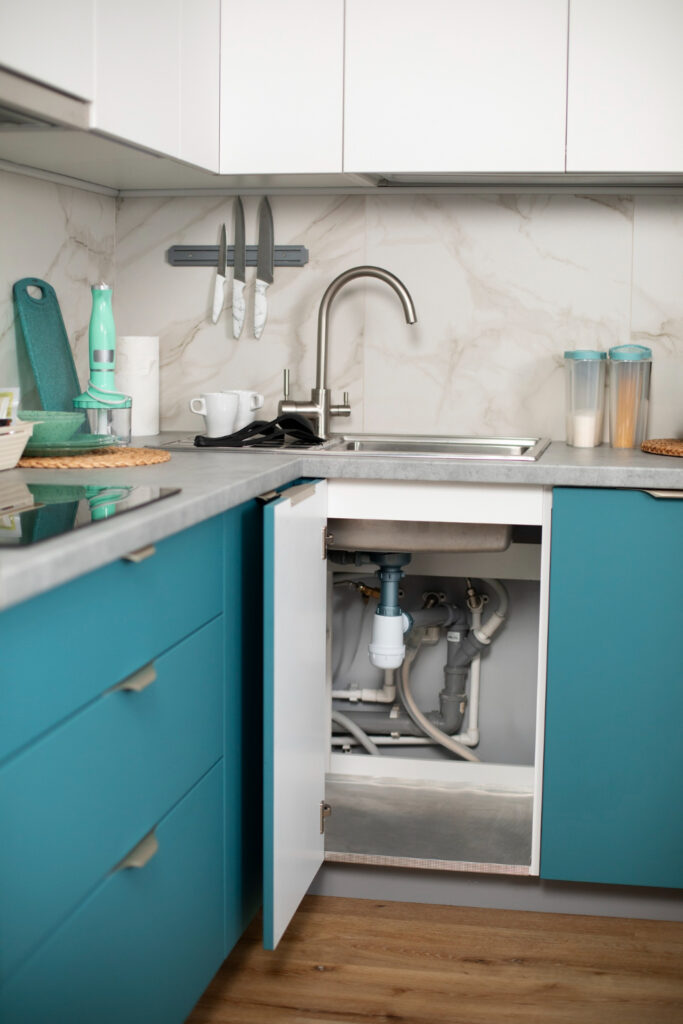

Connecting the Sink and Dishwasher

• Install the sink mixer and 1/2″ flexible supply hoses.
• Tee the dishwasher to the cold line with a dedicated valve; route the discharge hose to a high-loop or air-gap as per catalog.
• Set the sink trap for easy removal and cleaning without dismantling the mixer or sink.

Installing the Drainage Pipes

• Build the 1–2% slope; use a collector fitting with a cleanout.
• Connect the dishwasher outlet to a dedicated fitting with backflow prevention.
• Leak test with cold water then hot to observe gasket expansion.

Installing Valves and Faucets

• Distribute valves per the location table; label the opening/closing directions.
• Orient stop taps for easy access under the sink.
• For faucet types and mounting details, refer to:
  Kitchen Faucet Installation: Types and Method

Table (2): Suggested Valve Locations and Functions

Location	Valve Type	Common Size	Function
Kitchen branch entry	Main shutoff	3/4″–1″	Isolate the entire kitchen for maintenance
Under the sink (hot/cold)	Angle valve	1/2″	Quick isolation for mixer and filter
Dishwasher line	Angle/ball	3/8″–1/2″	Isolate the appliance during faults
Instant heater line	Two valves + non-return	Per catalog	Safe operation and backflow prevention
Refrigerator line	Needle valve	1/4″–3/8″	Fine control of feed

Table (3): Typical Supply and Drain Sizes for Kitchen Fixtures

Item	Cold/Hot Supply	Drain (ID)	Feed Height (from floor)	Drain Outlet Height
Single/Double sink	1/2″ hot + 1/2″ cold	1½”	50–60 cm	45–55 cm
Dishwasher	3/8″–1/2″ cold	Via sink trap or 3/4″ with air gap	50–60 cm	High loop inside the cabinet
Refrigerator with ice maker	1/4″–3/8″ cold	—	20–30 cm behind the unit	—
Under-sink purifier	3/8″ cold	3/8″ to trap	50–60 cm	45–55 cm

Values are common for residential work and should be checked against manufacturer catalogs and local codes.

---

Testing and Handover

Table (4): Pre-handover Test Procedures

Test	Method	Interpretation
Supply pressure test	Raise pressure to the material’s test value and monitor drop over a set period	Stable readings indicate tight connections
Flow check	Time the filling of a graduated container at use points	Compare hot vs. cold to find bottlenecks
Drain test	Pour a measured volume while observing discharge speed	Uniform flow without air burps or back-up
Odor test	Leave traps primed and check after 24 hours	No smell confirms trap and vent integrity
Noise/vibration check	Cycle points while watching for resonance	Add supports or rubber isolators where needed

Table (5): Clearance Distances and Execution Notes

Item	Suggested Clearance	Note
Pull-down faucet hose path	≥ 40 cm free space under sink	Prevents counterweight snagging and ensures head return
Separation of water and electrical lines	≥ 10 cm horizontally	Reduces contact risk
Cleanout opening height	10–20 cm below countertop	Access without cabinet removal
Support spacing for PEX	Every 60–90 cm	Reduces hum and sagging
Support spacing for PVC/CPVC	Every 90–120 cm	Maintains required drain slope

---

Conclusion

The content presents a structured sequence starting with identifying kitchen needs and locations, followed by selecting pipe materials, distributing valves, and designing the drainage and vent system, then detailed execution steps for connecting the sink and dishwasher and the pre-handover tests. Five subsections are included under planning and design to cover material selection, valve locations, drainage design, sizing/pressure/flow calculations, and routing with sleeves. Comparative and reference tables for dimensions, elevations, tests, and clearances are added for quick on-site consultation.

---

FAQs

What is the suitable slope for sink drain lines?

A slope of 1–2% toward the outlet provides steady flow and reduces blockage risk.

What sink drain diameter is most common?

A 1½-inch drain with a removable P-trap for cleaning.

Where should the main isolation valves be placed in the kitchen?

A valve at the kitchen branch entry and angle valves under the sink, for the dishwasher line, instantaneous heater line, and refrigerator line.

What is the difference between connecting a dishwasher and a sink mixer?

The dishwasher usually needs a dedicated 3/8″–1/2″ cold line with its own valve and a discharge via high loop or air gap, while the sink mixer needs two 1/2″ hot and cold lines.

What are the venting requirements for the drain network?

Connect the wet vent to the main line to stabilize pressure and prevent trap siphoning, with a nearby cleanout for the sink.

What are the key factors in choosing pipe material?

Thermal and pressure resistance, corrosion and scaling resistance, available joining method, required support spacing, and market availability of parts.

What are common outlet heights for supplies under the sink?

Hot and cold feeds typically 50–60 cm above finished floor, and the drain outlet around 45–55 cm depending on cabinet and sink design.

How is the pressure test performed before wall close-up?

Cap open ends, raise pressure to the material’s test value, monitor any drop during the test period, then record the reading.

What is the best location for the refrigerator water connection?

Behind the unit at a height of 20–30 cm with a 1/4″–3/8″ needle valve for precise shutoff.

What action is recommended if humming is heard in supply lines?

Add additional supports, use rubber isolators at fixing points, and check the pressure regulator if pressure is high.
