Rain Shower: Complete Guide to Design, Installation, and Features
بدر الحسني | Bader Al Hassany11 min read
The use of a rain shower is becoming increasingly common in modern bathrooms, especially in residential projects that focus on the quality of bathroom finishes and their integration with contemporary interior design trends. This type of shower is based on the idea of water falling in a wide, even pattern that resembles rainfall, through a large head mounted on the ceiling or wall, while taking into account the size of the bathroom and the nature of the plumbing and drainage systems.
Choosing a rain shower system is linked to the type of hydraulic installation, the size of the shower area, and the overall interior design style of the bathroom, in addition to the level of specifications in the project as a whole. Some projects treat the rain shower as part of an integrated system that includes flooring, wall finishes, and lighting, as seen in master bedrooms with en-suite bathrooms designed under a single vision, similar to what is presented in the article
Master bedroom design
.
The concept of the rain shower and its evolution
The term “rain shower” refers to a shower head with a larger diameter than traditional shower heads, distributed with numerous nozzles that allow water to flow over a wider area of the body, and in an almost vertical direction from top to bottom. This type first appeared in hotels and resorts, then gradually moved into residential use as products specifically tailored for homes became available.
A rain shower does not necessarily rely on complex technology; the basic idea is to distribute water evenly at a defined flow rate. The main differences between it and a conventional shower include the head size, mounting position, and angle of water fall, in addition to aesthetic options that align with interior design trends that focus on simple lines and broad, clean surfaces.
Components of a rain shower system
The following table summarizes the main components of rain shower systems and their functions within the bathroom:
| Component | Brief description | Design notes related to installation |
|---|---|---|
| Rain shower head | Circular or square disk with a large diameter containing multiple nozzles to distribute water evenly | Integrates well with suspended ceilings and minimal surfaces |
| Mounting arm (ceiling/wall) | Element that connects the shower head to the supply point in the ceiling or wall | Determines the height of the rain shower and the angle of water fall |
| Mixer/thermostatic valve | Component that controls water temperature and flow rate and may be exposed or concealed in the wall | Concealed solutions provide a cleaner look in interior design |
| Drainage and floor system | Floor slopes and linear or point drains in the shower area | Affected by the choice of tile type and slip-resistance properties |

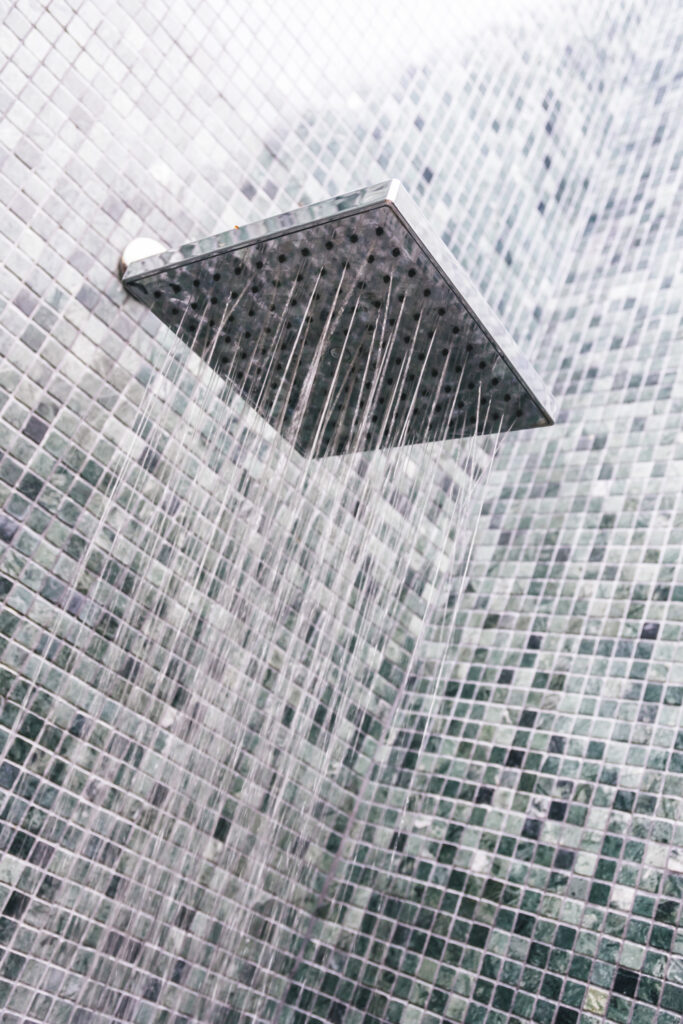

Rain shower head
The rain shower head is usually circular or square, with a diameter of approximately 20 to 40 cm in many residential products. It is made from coated metals or a combination of metal and high-durability plastic, with small internal channels leading to closely spaced nozzles that allow water to cover a larger area of the body compared with a standard shower.
Mixers and temperature control
A rain shower installation system is connected to a mixing valve that controls water temperature and flow rate. In some cases, a concealed mixer is used inside the wall with a simple front plate that matches calm interior design trends, and this type provides a cleaner appearance for the wall compared with exposed mixers, with the possibility of adding more than one outlet within the same set (for example, a rain head plus a handheld shower).
Drainage systems and bathroom floor
Water flow from a rain shower is wider than from a conventional shower, which increases the importance of bathroom floor design in terms of tile slope and direction of drainage. Many projects use linear drains or multiple drain points to prevent water pooling. These elements are linked to what is discussed in the article
Best types of flooring
in terms of choosing materials that can withstand moisture and provide a safe surface in shower areas.
Installing a rain shower within bathroom interior design
Ceiling-mounted rain shower
A rain shower can be mounted on the ceiling using a short concealed arm or integrated fixtures within a suspended ceiling, so that the head appears as a part of the ceiling itself. This type depends on pre-planned routing of water lines through the ceiling and on sufficient height to allow the water to fall at the desired angle, in harmony with ceiling lighting units and edge detailing.
Wall-mounted rain shower
In some projects, the rain shower is mounted on the wall using a projecting arm that carries the large head. This solution is used when modifying the ceiling is difficult or when the plumbing is concentrated in the wall. This configuration allows easier access to the pipework during maintenance while still preserving the idea of a rain shower with a wide flow and almost vertical direction.
Integration of the rain shower with overall interior design
A rain shower can be integrated into the home’s overall interior design when it is treated as part of a continuous design line linking the bathroom with the bedrooms and other spaces. Colors and materials used in the bathroom can be aligned with the styles presented in the
Décor section
, so that bathrooms are treated as complete design spaces rather than merely functional service areas.
Technical considerations when installing a rain shower
The following table brings together a set of common technical considerations when planning to install a rain shower in a residential bathroom:
| Technical factor | Questions to ask during planning | Impact on daily use |
|---|---|---|
| Water pressure | Is the network pressure sufficient to operate the rain shower head? | Affects the pattern of water fall and uniformity of flow |
| Drainage system | Do existing slopes and drains handle the expected water volume? | Reduces water pooling and slipping in the shower area |
| Waterproofing and moisture resistance | Are walls and floors adequately waterproofed? | Reduces moisture transfer to adjacent rooms or ceilings |
| Available space | Does the shower area accommodate a large head and proper glass partition? | Supports comfortable movement within the dedicated shower space |
| Type of mixer and finishes | Will a concealed or exposed mixer be used with the rain shower? | Reflects on the wall’s appearance and its harmony with the overall design |
Water pressure and flow rate
A rain shower requires an appropriate flow rate and pressure to achieve a uniform water fall. Before installation, product specifications are reviewed to ensure compatibility with the available water pressure in the unit, taking into account other elements in the system such as filters or pressure regulators that may affect performance.
Waterproofing and moisture resistance
Having a rain shower in the bathroom ceiling or in a relatively open area increases waterproofing requirements for walls, ceilings, and floors due to the wider spread of spray. For this reason, many projects rely on waterproof layers beneath the tiles and on special treatments at wall–floor junctions to prevent water leakage into adjacent spaces.
Pre-installation requirements
In new projects, water lines are routed through predetermined positions in the ceiling or wall before finishing, while installing a rain shower in an existing bathroom requires reviewing access to current pipework. The amount of work needed is directly related to the type of rain shower system selected and whether it will be mounted on the ceiling or the wall.
Comparison between rain showers and other shower types
The following table provides a descriptive comparison between the rain shower and some common shower systems in residential bathrooms:
| Type | Direction of water fall | Coverage area | Degree of flexibility in direction | General notes |
|---|---|---|---|---|
| Rain shower | From top to bottom in an even pattern | Wide | Usually fixed | Depends more on proper installation and drainage |
| Handheld shower | From the head or hand depending on use | Medium to limited | Very high | Useful for cleaning and for small spaces |
| Traditional wall shower | Angled from the wall towards the body | Medium | Medium | A common solution in traditional residential bathrooms |
This comparison helps position the rain shower within a broader context of available bathing solutions, describing the characteristics of each system without directly favoring one type over another.
Disadvantages of the rain shower
Some disadvantages associated with using a rain shower in residential bathrooms include the need for adequate water pressure to achieve an even distribution of flow and the potential for increased water consumption compared with certain traditional shower heads when using large heads with many nozzles. This type of shower also requires more precise planning of drainage and floor slopes because water spreads over a wider area, which calls for careful planning of the drainage path.
Over time, mineral deposits may accumulate in the nozzles of a rain shower head, requiring periodic cleaning to maintain flow quality, particularly in areas with high water hardness. In small bathrooms, the spread of water may also reach areas not intended for bathing if the glass partition or dividing wall is not designed properly.
Features and notes on using rain showers
Residential use of rain shower systems shows several recurring characteristics, including wider water coverage, greater reliance on precise temperature control through mixing valves, and the visual interaction between the shower head design and the ceiling or wall surface. In contrast, some systems require attention to water consumption rates and careful design of drainage paths to prevent water accumulation in the shower area.
Frequently asked questions about rain showers
What is a rain shower?
A rain shower is a type of shower head designed with a larger diameter and many nozzles that allow water to fall in an even pattern resembling rainfall. It is usually mounted on the ceiling or high on the wall, so the water covers a larger area of the body compared with a conventional shower.
What is a ceiling rain shower?
A ceiling rain shower is a rain shower system installed directly in the bathroom ceiling, either via a short concealed arm or with a head integrated into a suspended ceiling. This system relies on water lines that run through the ceiling and is widely used in bathrooms with contemporary interior design that favors clean lines and concealed details.
What are the disadvantages of a rain shower?
A rain shower generally requires relatively high water pressure to ensure a uniform flow and may use more water in some large-head designs. It also requires accurate installation in the ceiling or wall to control piping routes and prevent leaks, and it needs a well-designed drainage system to avoid water pooling. Over time, mineral deposits can build up in the nozzles, requiring regular cleaning to preserve flow quality, especially in small bathrooms where water spread may exceed the shower area if partitions are not properly designed.
Is a rain shower practical?
The practicality of a rain shower depends on the design, bathroom size, drainage quality, and water pressure. In bathrooms with good drainage and suitable water pressure, the rain shower functions as a system that provides wide water coverage within a coordinated design context, while small bathrooms with limited drainage capacity or low pressure may require additional study before adopting it.
Does a rain shower require special rough-in work?
A rain shower usually requires prior planning for pipe locations, particularly when installed in the ceiling or when using concealed mixers. In units under construction, supply points are prepared in specific locations within the plans, while installing a rain shower in an existing bathroom requires reviewing access to current pipework and making necessary modifications, making the rough-in stage a key part of planning.
What are the best types of showers?
There is no single type that can be considered the best in all cases; assessing the best shower type depends on bathroom size, available water pressure, and the desired interior design style. Some projects use a dual system that combines a fixed rain shower head with a flexible handheld shower, while others favor traditional wall or handheld showers only, depending on installation conditions and usage patterns.
What is the strongest shower?
The term “strongest shower” is often used to describe a shower that provides a higher sense of pressure over a limited area, which is typically associated with smaller heads or systems designed to deliver water through fewer, more concentrated nozzles. In contrast, a rain shower distributes water over a wider area, which changes the feeling of pressure even if the overall flow rate is similar or sometimes higher in certain models.
Conclusion
In residential bathrooms, a rain shower appears as an element that combines function and visual impact, relying on a wide head and even water distribution and connecting directly to hydraulic installations and the nature of floor and wall finishes.
**
- **
- **
**
**
**
**
**
**
**
**
**
**
**
**
**
**
**
